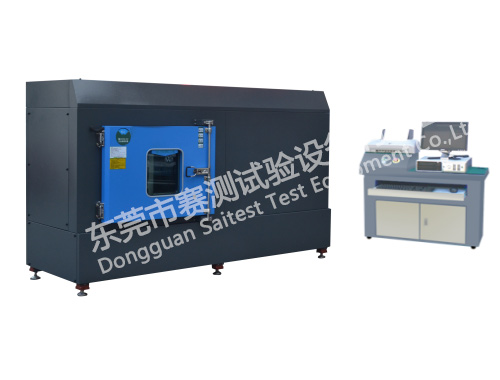

全功能电脑动力电池挤压试验机模拟各类动力锂电池级在使用过程中，电池遭受挤压的情形，人工呈现电池在遭受挤压时可能出现的不同状况。
Full function computer power battery crush simulates battery crushing situation during usage, artificially present different conditions when battery suffers crush.

标准依据

产品特点 Product Feature

本测试设备主要用于汽车锂电池、动力电池、蓄电池、电动车电池等电池的安全检测，是一款集压力系统、防爆系统、数据采集系统、电脑控制系统等为一体，采用试验设备主体与控制系统隔离分开操作，实现远程监控及测试，多层安全保护装置，可符合多个测试标准，主要部件采用进口配置，是一款电池厂家及研究所必不可少的检测设备。



The test equipment is mainly used in vehicle lithium battery, power battery, storage battery, electric car battery to do battery safety test, it is an integration multi-layer safety protective device with pressure system, explosion proof system, data acquisition system, computer control system; it adopts test equipment main body and control system isolated operation, also can remotely monitor and test, meet multiple test standards. Major parts of equipment adopt imported configuration, it is an essential test equipment for battery manufacturers and research institute.

技术参数 Technical parameler:

Model Specification		CZ-DJY-10T	CZ-DJY-20T	CZ-DJY-50T	CZ-DJY-100T	CZ-DJY-200T	CZ-DJY-500T
压力（T）Force		10	20	50	100	200	500
最大位移（mm）Max. Displacement(mm)		500	500	500	1000	1000	1000
辅助功能(选配) Accessibility(optional)		电压、温度采集、视频监控系统、灭火系统、安全防爆系统、烟雾过滤系统 Voltage, temperature collection, video monitoring system, fire extinguishing system, explosion protection system, smoke filter system
挤压速度 Compression Speed		0~40mm/min (可调 adjustable)
测试空间（mm） Test Space(mm)		200x200x200mm、300x300x300mm (可按要求定制 Can customize according to requirement)
外形尺寸 External size		W680xD570xH1740mm
选配标准 Option Index	电压选择 Voltage options	0-10V, 0-100V
	温度采集范围 Temperature Acquisition Range	0~1200℃
	电压、温度精度 Voltage/Temperature Accuracy	±%FS
	电压分辨率 Voltage Resolution	1mv
	温度分辨率 Temperature Resolution	0.1℃
主要技术指标 Major Technical Index	速度 Speed	0~40mm/min(可调 adjustable)
	挤压行程 Compression Stroke	0~300mm范围内可选 Select within 0~300mm

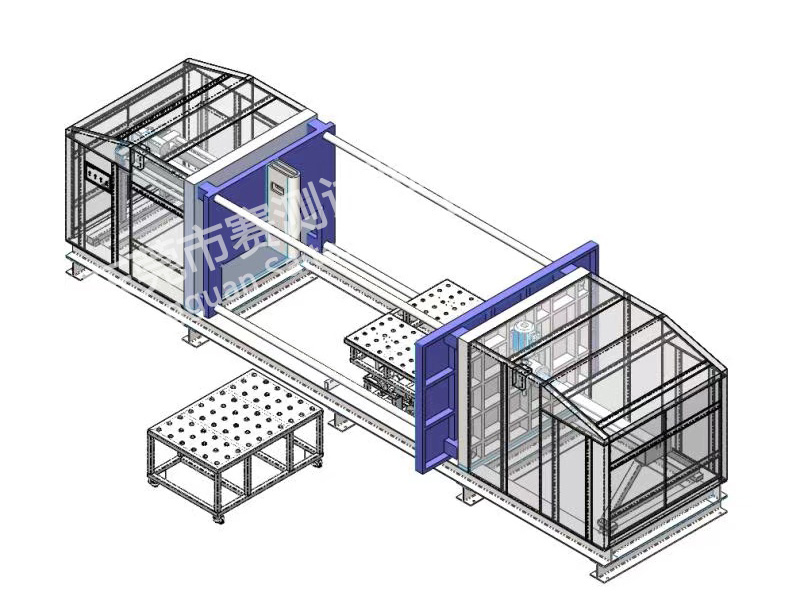

	结构 Structure	立式、卧式（可根据实际尺寸选择）vertical, horizontal type (select according to the actual size)
	试验条件 Test Conditions	作用力大约13KN,一旦达到最大压力即可泄压 Applied force is approximately 13KN; when it reach the max. value, the air press can be released.
	挤压方式 Compression Method	横向、纵向 Transverse, Longitudinal
	挤压变形量 Compression Deformation	无（如需要则需另选电脑控制系统系列） Non (if needed, please select computer-control system series)
	挤压保持时间 Compression Retaining Time	0~99小时99分99秒 0-99hrs99mins99secs
	驱动方式 Dive Method	液压 Hydraulic
	挤压精度 Needling Accuracy	1%
结构 Structure	箱体 Cabinet	立式或卧式结构与控制部分分开 Vertical structure is separated from control part
	通讯 Communication	无（如需要则需另选电脑控制系列） Non (if needed, please select computer-control system series)
	挤压夹具 Communication	平面挤压盘，可根据不同标准选配不同夹具 Flat compression plate, can select fixture as per specific standard.
	数据采集模块 Data Acquisition Module	独立远程采集隔离，多路电压、温度、电流采集通道、确保数据无误（选配）Independent remote acquisition isolation; multiple-channel voltage, temperature, current acquisition channel;
	通道数量标配 Equipped Channel Number	2通道、4通道、8通道，多种数据采集系统（选配）2 channels, 4 channels, 8 channels, multiple data acquisition system(optional)
	摄像监控系统 Monitoring System	测试区域装配高清摄像监控系统，并可远程控制，具有防爆功能（选配）Test area equipped with HD monitoring system, with remote control, and explosion-proof function(optional)
标准配置 Standard Configure		挤压主机1套，控制柜1套，挤压盘1个 Host computer 1 set, controller cabinet 1set, compression plate 1 set
测试夹具 Test Fixture		特定制作，根据样品实际使用条件而定Specific production, according to the actual using conditions of sample.
电源电压 Power Supply		AC 380V 50Hz 三相五线制 three phases five wires
使用环境 Operation Ambiance		0~45℃
